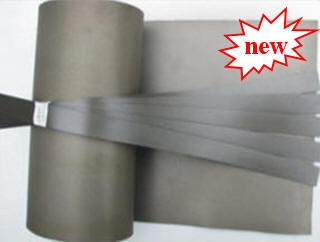

Flexible NdFeB Magnets
Flexible NdFeB Magnets
Product Brief Introduction Flexible NdFeB magnet is a kind of flexible permanent magnetic material with high power. Its performance is more excellent than ferrite magnets and it can be used for variou..
Bookmark this product
Add to My FavoritesDescription:
Product Brief Introduction
Flexible NdFeB magnet is a kind of flexible permanent magnetic material with high power. Its performance is more excellent than ferrite magnets and it can be used for various kinds of high powered micro-motor strip,sensors, plane loudspeaker and other fields.
Product Features
The strongest isotropic flexible magnet in the world so far, a Max. BH of 90KJ/m3(11.25MGO) is available at laboratory, an amazing 5 times more than that for Ferrite magnetic strip, quite close to the highest property of compression Molded NdFeB ring magnet, its magnetic property for industrial batch quantity ranges from 16 to 68 KJ/m3(2.0-8.5MGO)
1. Outstanding flexural strength, automatically assembled, with an efficiency better than compression molded ring magnet
2. Dispensing with mold, short downtime
3. Applicable working temperature: -40 degrees centigrade to 120 degrees centigrade
4. Made into different shapes such as long strip, slim strip, ring, pore plate, large sheeting, etc. to meet different requirements
5. Consistent and reliable
Production Flow Chart
Raw material (NdFeB powder and binder)preparation---Mixing---Extruding/Calendering---2D shape making---Surface treatment---Cutting---Magnetizing---Final inspection---Packing---Warehousing
